    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370

    Ask Lasest Price
    Brand Name : JORI
    Supply Ability : 50 Unit/Units per Year Brake lathe machine C9372/brake lathe machine C9350/Brake lathe
    Price : $4,200.00/Units 1-9 Units
    • Product Details
    • Company Profile

    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370

    Product Description

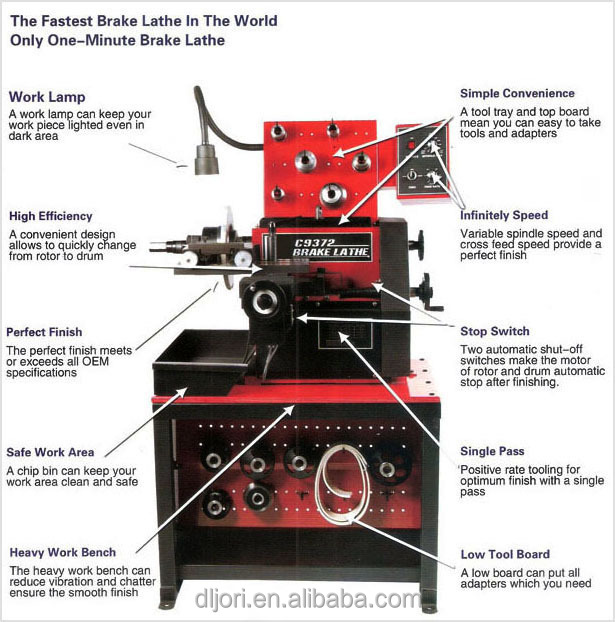

    Brake Drum And Disc Cutting Lathe Machine C9372

    Features:

    Quickly, accurately and efficiently to cutting rotor;
    Fast and slow setting allow cutting rotor;
    Quick, accurately and efficiently to cutting drum;
    Finitely adjustably setting allow cutting drum;
    Three kinds of speed to choice for spindle speed;
    Fully equipped adapter package.
    A convenient design allows to quickly change rom rotor to drum;
    Position of stop make the lathe stop automaticafter the cutting;
    Model
    C9350
    C9370
    C9372
    Spindle Travel
    175mm
    251mm
    Spindle Speed
    70, 80, 118rpm
    70,88,118 rpm
    70-320rpm
    Spindle Feed Speed
    Min 0.05mm/rev
    Min 0.05mm/rev
    Rotor and drum feed rates 0-0.66mm
    Max 0.5mm/rev
    Max 0.5mm/rev
    Cross Feed Speed
    Min 0.05mm/rev
    Min 0.05mm/rev
    Rotor and drum feed rates 0-0.66mm
    Max 0.5mm/rev
    Max 0.25mm/rev
    Handwheel Graduations
    0.05mm
    0.05mm
    Rotor Diameter
    180-381mm
    180-457mm
    102-610mm
    Rotor Thickness
    48mm
    102mm
    73mm
    rum Diameter
    175mm
    251mm
    229mm
    Motor
    1PH 110V/220V 50/60HZ , 3PH 380V 50/60HZ
    1PH 110V/220V 50/60HZ
    Gross Weight
    290kg
    400kg
    300kg
    Dimension
    970x920x1140mm
    1100x1070x1140mm
    1000x860x1300mm
    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370
    Related Products
    Packing&Shipping
    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370
    Service
    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370

    Pre-sales Service Of Brake Drum And Disc Cutting Lathe Machine

    1.Fastly and professional reply to you about your questions for our hot melt glue machine.
    2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines.
    3.Detailed and clearly explain to you when you come to our factory for visiting before contract.

    In-sales service for Brake Drum And Disc Cutting Lathe Machine

    One-stop and customize service for you, different kinds of hot melt glue machine are available from us.
    24 Hours online service, 7 Days one week support for you if any technical questions or problems about hot melt glue machine.

    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370
    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370

    After sales service for

    Brake Drum And Disc Cutting Lathe Machine

    1.Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
    2.Guarantee you steady supply for the spare parts with the lower prices

    FAQ
    Brake Lathe Machine C9372/Brake Lathe Machine C9350/Brake Lathe Machine C9370

    1. How long is your Warranty?
    A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
    Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
    After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

    2. How to Guarantee transaction security?
    A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that's designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

    3. Do your company accept Alibaba Trade Assurance?
    A: yes, of course. (1) We will draft order accoring buyer requirements. (2)Negotiate terms with the supplier
    and confirm order (3) Make payment to the bank account designated by Alibaba.com

    4. What's the payment terms?
    A: 30% initial payment when place your order, 70% balance payment before shipment.

    5. About machine's Transportation & documents?
    A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
